219 989$

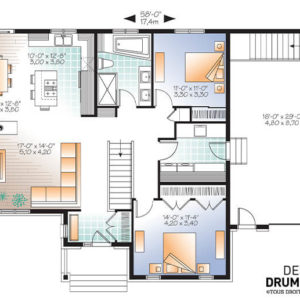

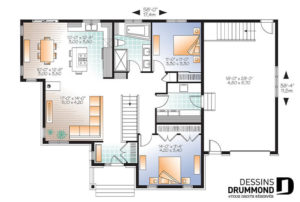

PRIVILEGE SERIES. OPTIMIZED FLOOR PLANS. FASTER DELIVERY TIME. PRIVILEGE PRICING. This version is particularly suited to those for whom the convenience of having everything on the same level, whether due to advanced age or other considerations, takes precedence over the number of bedrooms required. The three bedrooms of the original plan become two as the third is replaced with a laundry/utility room in which a large counter complete with sink and place for a separate freezer are practical features that are sure to be appreciated by the occupants. Naturally, this "baby boomer" approach includes the addition of a nicely sized garage that has service entrances in the front and rear with direct access to the basement. The 100 square feet added to the main level enhances the comfort and size of the rooms including an open, well fenestrated activities area complete with a fireplace in the center. Another wonderful feature of this plan is the abundant storage space and kitchen island. There is a practical, double vanity in a bathroom that boasts a separate, corner tub an a 3' x 6' shower enclosure. A well considered choice for homeowners who know what they want!
219 989$
Polyethylene sealed membrane used as vapor barrier; Laprise 5½" anti-torsion and anti-thermal bridge columns mechanically staggered at 16" c/c; Expanded polystyrene insulation panels 5 ½ " thick; ½" plywood on all wall surfaces; Continuous 1" rigid insulating board; Weather shield; 2''x6" top plates and continuous expanded polystyrene insulation; Lintels (wood or engineered wood); Double lathing; Acoustic sealant; Tape.
Pre-assembled non load-bearing divisions with anti-torsion system ready for drywalling installation; Pre-assembled load-bearing divisions with anti-torsion system ready for drywalling installation; Unassembled basement divisions (according to plan); 2"x4" timber studs (dry wood); Double jambs.
5/8" B.C. fir plywood, glue and screws; Floor joists; Stiffeners (if needed, according to plan); Brackets for fasteners and nails; Load-bearing columns; Floor joist rim boards; Edge joists interior insulation; Structural beams; Sill plates; Box for podium bath (according to plan).
Asphalt architectural shingles and accessories; Plastic cement (pitch); Shingled starters; Eaves protection and self-adhesive membranes (according to plan); Galvanized steel valley flashings; Roof trusses and bracing; Attic fan; ½" plywood (gables and roofs); Drip edge flashings; Self-adhesive membranes (according to plan).
Ventilation deflectors; Polyethylene sealed membrane used as vapor barrier; 1"x3" ceiling laths at 16 c/c; Attic insulation; R-16 insulated attic hatch.
Lorendo PVC windows with energy-efficient thermal glasses; Windows & doors head flashings; Window jamb extensions (PVC optional); Exterior steel doors; Exterior door handles; R-16 insulated steel garage door (according to plan); Waterproofing membrane around openings; Insulating foam (urethane spray) around openings (doors and windows); Tiles (according to plan).
Under drip edge laths or 1"x3" exterior roof; Aluminum ventilated soffit; Fascia (according to plan); Lightweight exterior siding (vinyl, wood fiber or wood) and finishing accessories (according to plan); Masonry not included; Fireplace box (according to plan); Sun guard beams (according to plan); External load-bearing columns/posts (according to plan); Balcony and/or patio and/or gallery (according to plan); Decorative elements (according to plan).
Adjustable closet rail-based storage system with rods, poles and shelves; Baseboards and moldings; Drywall boards ½" and screws; Interior doors; Interior door handles; Staircase (according to plan); Stair railings; Hand rails; Heat recovery ventilation device.
Kit transportation is included within 300 km from the city of Montmagny (Quebec) by municipal road network. Every additional km (exceeding 300 km) is calculated according to the kit delivery/construction address. Transport by sea not included. *FOB price applies for delivery outside the province of Quebec.
Excavation; Foundation and foundation insulation; Kit installation and subcontracting works (plumbing, electricity, etc.); Floor coverings; Plasterboard jointing and finishing; Painting; Wood fireplace and its prefabricated fireplace; Kitchen, bathroom cabinets and built-ins; Masonry stones; Gutters; Dry wall corners; Land and services; Other possible exclusions.
